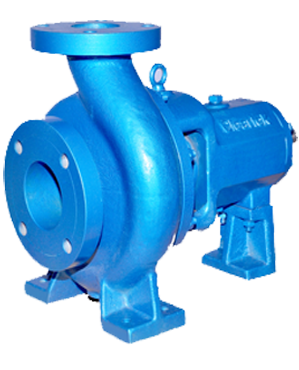

End Suction Centrifugal Pumps
APPLICATIONS
Cleatek Chemical process Pumps are used for Chemical, Petro chemical Industries , Dyeing Industries , Sugar Mollases. Paper & Pulp Industries, Fertilizer Units etc. Pumps are suitable for hadling liquids having temprature ranging from 10°C to 200°C.
Operating Range:
1. Capacity : Up to 400 m3/hr
2. Head : Up to 140 Metres
3. Casing Pressure : Up to 16 Kg/cm2
4. Delivery Sizes : DN 25 mm min to DN 150 mm
5. Speed : Up to 2900 rpm
Constructional Features:
1. Horizontal Back pull out design for ease of maintenance.
2. Dynamically balanced single suction open, semi open and enclosed type impeller.
3. Models are suitable to operate at 1450 rpm and 2900 rpm.
4. Centerline discharge volute castings.
5. Standard bearings are grease.Oil lubrication can be provided against requirement.
6. Standard flange drilling as per DIN 2533 ND16.Drilling as per ASA/BS/IS can also be offered against specific requirement.
7. Direction of rotation - Clockwise viewed from driving end.
RANGES & MODELS
More than 70 Ranges and models starting from 25mm delivery opening with 125mm dia impeller to 150mm delivery opening with 400mm impeller dia
Materials Of construction
Gradedcastiron,WCB,CF8,CF8M,SS316L,CD4Mcu,ALLOY20,HASTALLOY 'B' & 'C' etc.

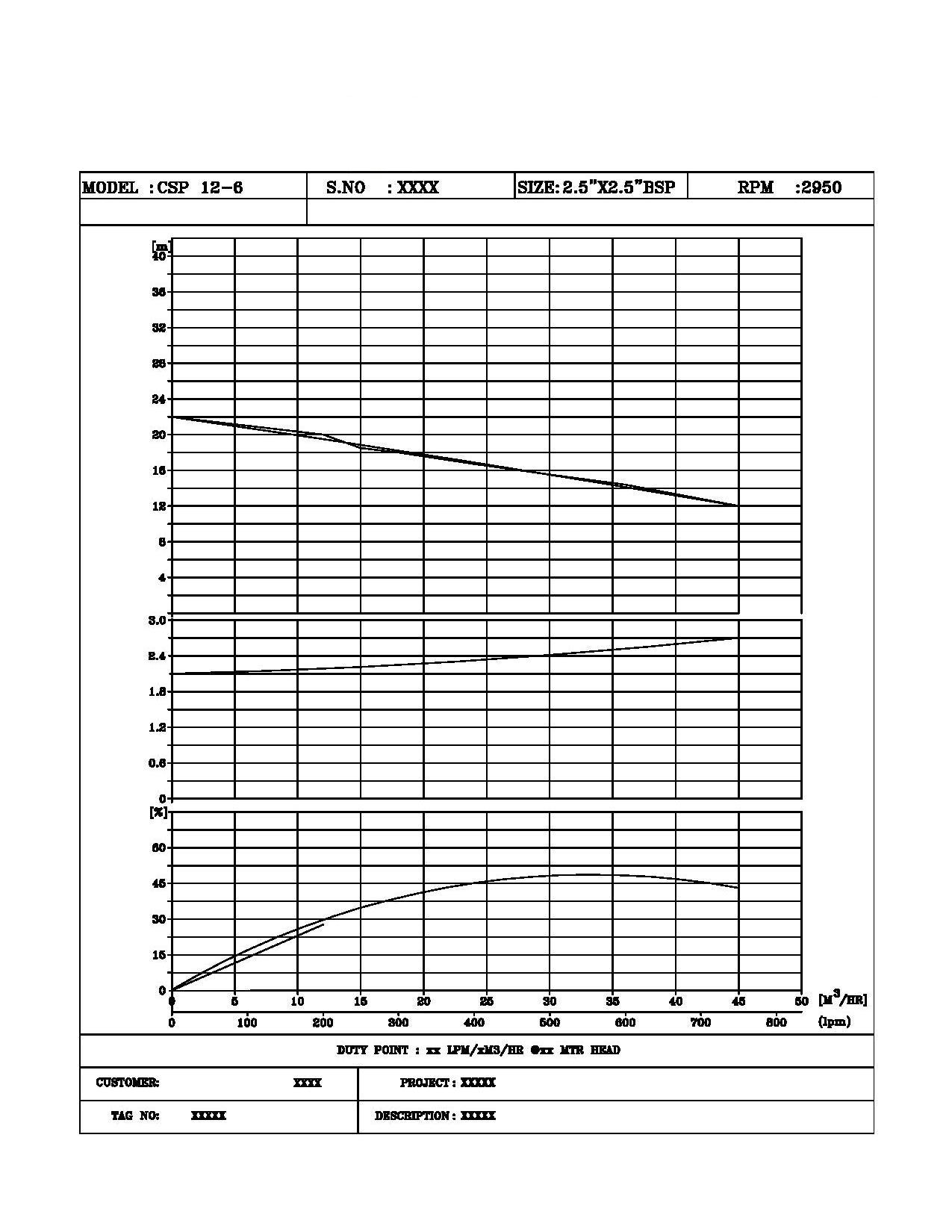

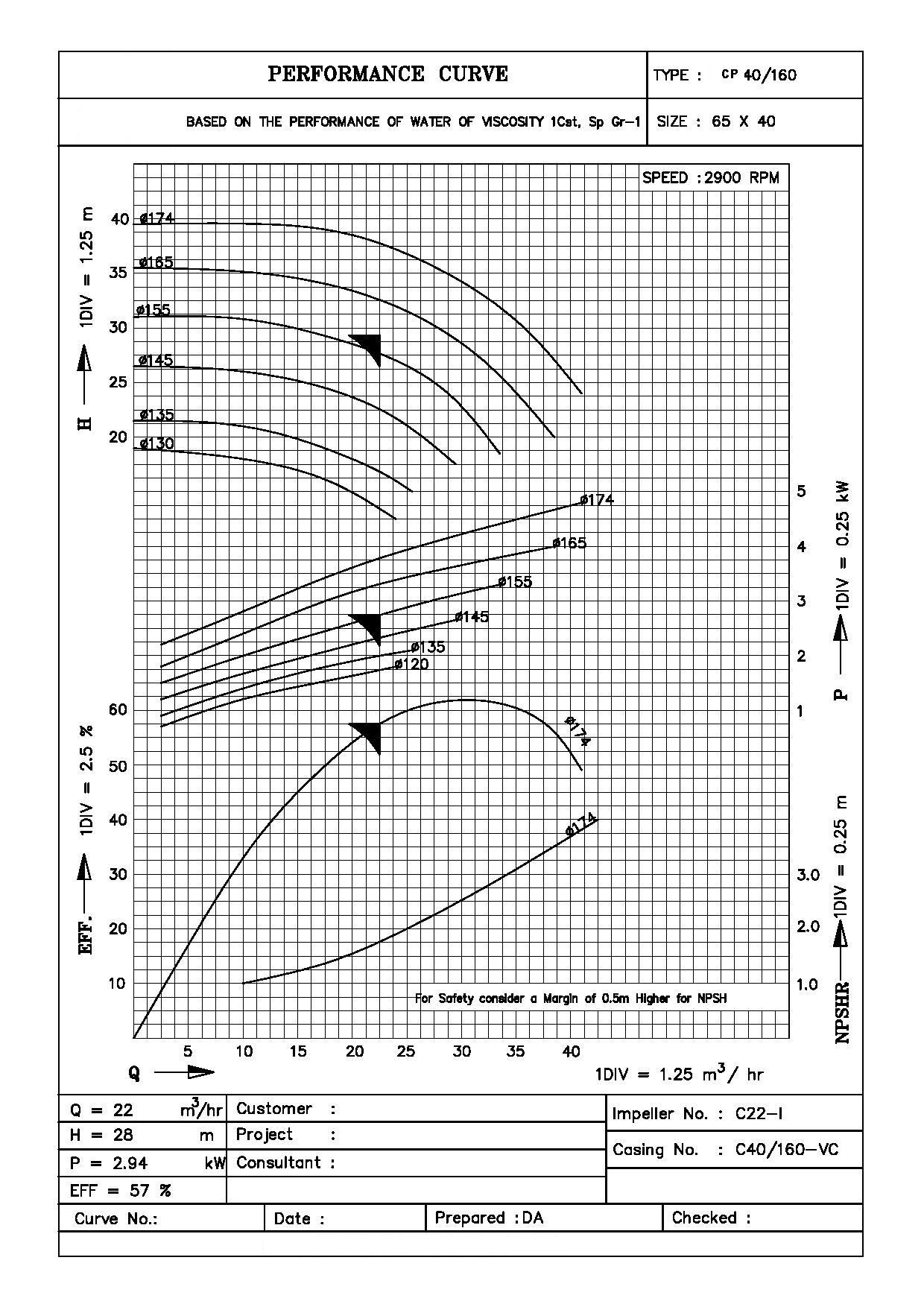

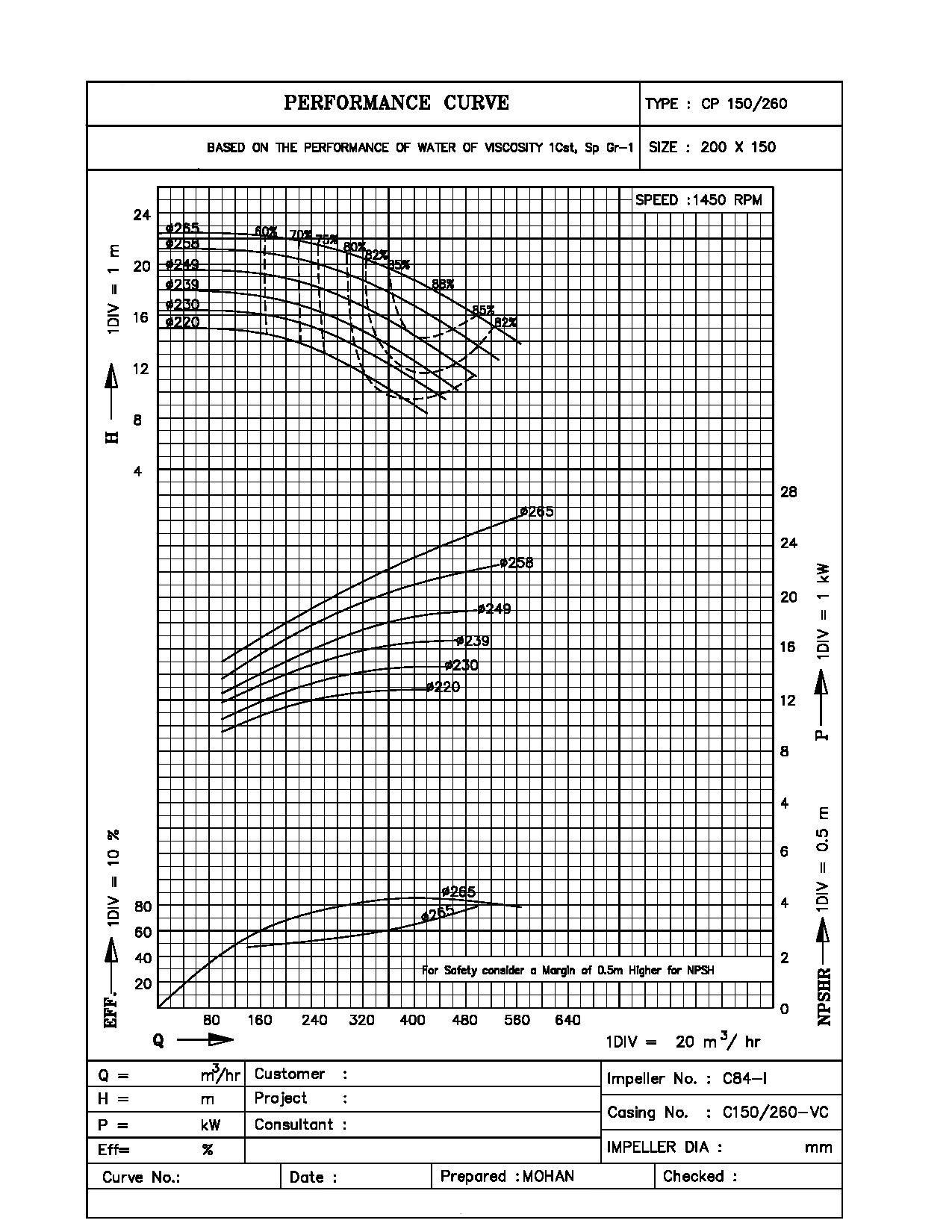

PERFORMANCE CURVE OF SPECIFIC MODELS WILL BE SENT BY MAIL ON REQUEST *

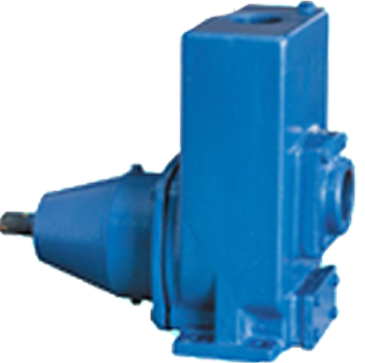

SELF PRIMING NON CLOG PUMPS
APPLICATIONS
Effluent Treatment Plant,sewage Treatment Plant,Mud Slurry ,Petro chemical,chemical industries.
Operating Range:
1. Capacity : 70 m3
2. Head : 30 m
3.Material of construction: SS316/SS304/C.I/Gun Metal/Bronze
4. Delivery Sizes : 25mm X 25mm to 100mm X 100mm
5. Speed : Up to 2900 rpm
Materials Of construction
Graded cast iron , WCB, SS304 , SS316L, Gun Metal ,Bronze.
PERFORMANCE CURVE OF SPECIFIC MODELS WILL BE SENT BY MAIL ON REQUEST *

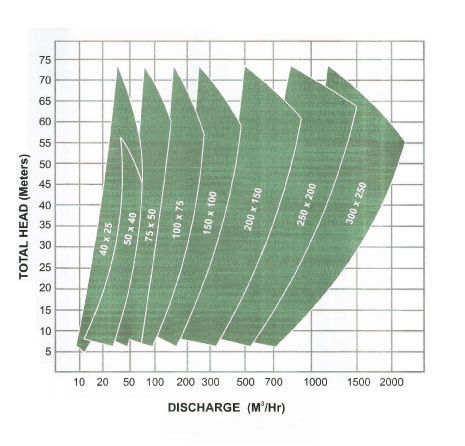

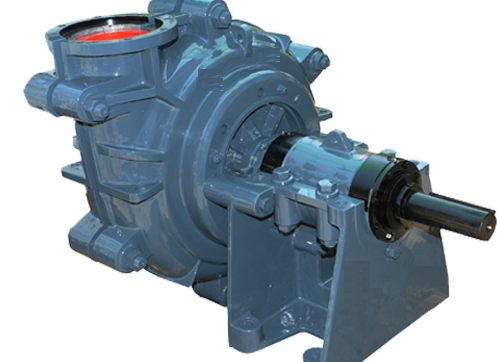

Horizontal Centrifugal Slurry Pump
APPLICATIONS
All types of hectrogeneous slurry having impurities.Mining industry coal, iron ore, ceramic slurry , thermal plants, and other heavy industries.
Operating Range:
1. Capacity : Up to 1500 m3/hr
2. Head : Up to 70 Metres
3. Casing Pressure : Up to 20 Kg/cm2
4. Delivery Sizes : upto 300mm
5. Speed : Up to 2880 rpm
Constructional Features:
1.Casing: Hard metal volute linear is enclosed with two halves of cast or ductile iron casings with reinforced ribs forms the casing assembly and provides the wear resistant high operating pressure capabillities .
2.IMPELLAR:Hard metal cast impellars with cast threading requires no nut or inserts and are designed for high efficiency and durability.
3.THROAT BUSH:Suction is provided with throat bush to reduce wear and easy maintainance as well as accurate alingment.
PERFORMANCE CURVE OF SPECIFIC MODELS WILL BE SENT BY MAIL ON REQUEST *

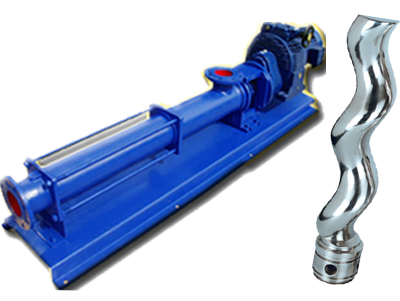

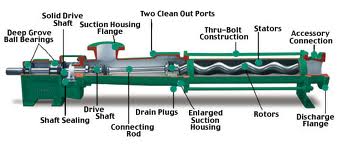

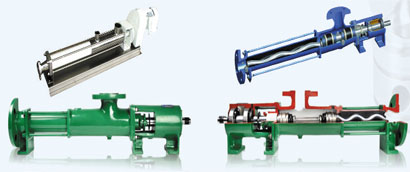

Progressive Cavity Screw Pumps

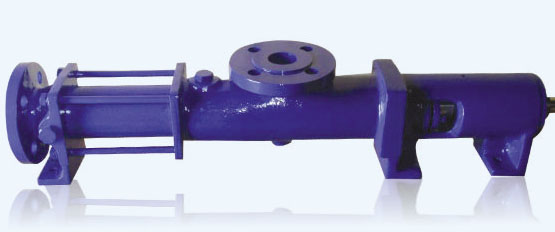

CX VERSION INDUSTRIAL HELICAL SCREW PUMPS
Capacity : 100 M3/HR, Pressure : 24 Bar, Temperature : 200°C, Viscosity : 1,00,000 CST
Application : China clay, sanitary industries and other Abrasive and Corrosive slurries, Effluents, high viscose materials, Paints, Vegetable oil & Sludge etc.,
Features: Robust Construction with cast iron Body various Metallurgy of rotating parts like Alloy steel, Tool Steel, SS 304 and SS 316 While and the stator filled with various combination of rubber like Nitrile , natural, viton, hypolon etc, depending upon the nature up of the mother liquid.

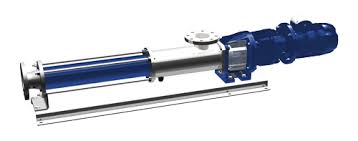

CK SERIES CLOSED COUPLED SCREW PUMP
Capacity: 100 M'/HR, Pressure : 24 Bar, Temperature : 200°C, Viscosity : 1,00,000 CST
Application :China clay, sanitary industries and other Abrasive and Corrosive slurries, Effluents, high viscose materials, Paints, Vegetable oil & Sludge etc.
Features:Robust Construction with cast iron Body various Metallurgy of rotating parts like Alloy steel, Tool Steel SS 304 and SS 316. The stator filled with various combination of rubber.

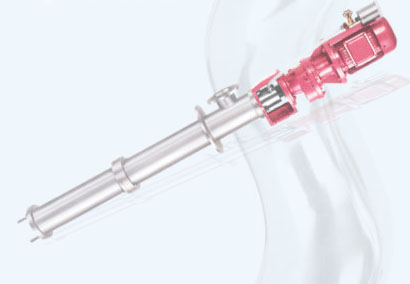

CB Series Vertical Barrel Lifting Screw Pumps
Capacity: 10 M3/HR, Pressure : 12 Bar, Temperature : 120°C, Viscosity : 1,00,000 CST
Features:Liquid and High Viscous Material to be lifted from the Barrel Oil, Grease, Confectionery, Edible Oil, Ghee, Butter, etc.

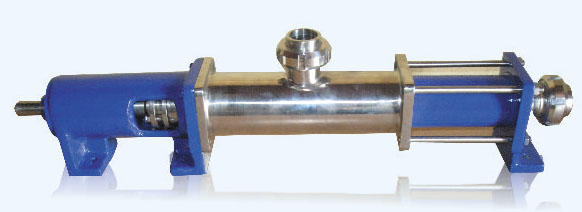

CH Series Quick Hygiene Screw Pumps
Capacity: 50 M3/HR, Pressure : 12 Bar, Temperature : 200°C, Viscosity : 1,00,000 CST
Application : Food Staff, Pharmaceutical Bulk drugs, Syrups etc., Fruits Juice, Squash Glucose etc..
Features:Robust Construction with cast iron body various metallurgy of rotating parts like Alloy steel, Tool Steel, SS 304 and SS 316.
CW Series Wide Throat Screw Pumps
Capacity: 100 MiHR Pressure : 12 Bar, Temperature : 200°C, Viscosity : 1,00,000 CST
Features:High Viscous Hard substance material handling, Hopper type suction inlet allows gravity flow of media to an augur pushing viscous substance in to the pumping screw. Standard material comes with mild steel and Stainless Steel Combination.
PERFORMANCE CURVE OF SPECIFIC MODELS WILL BE SENT BY MAIL ON REQUEST *

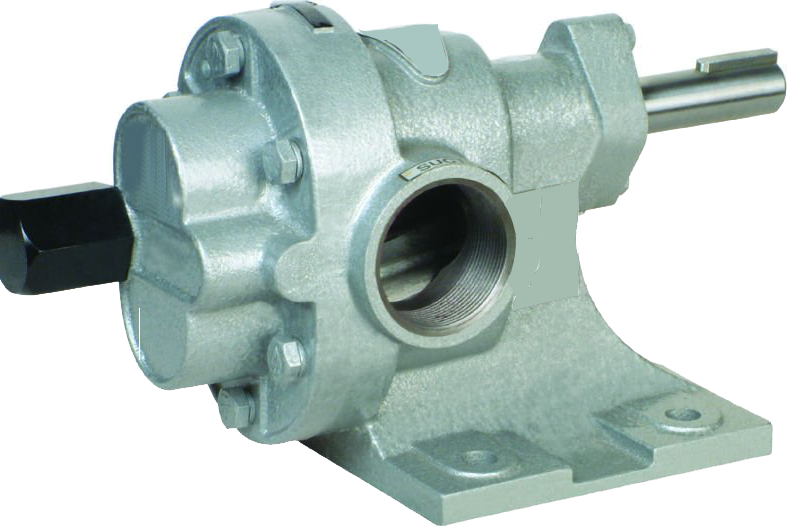

Gear Pumps
APPLICATIONS
cleartek rotary gear pumps are used in vareious industries like chemical acid handling ,food and beverages slurries high viscous material handling pulp stock etc

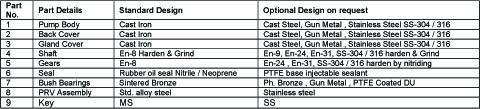

Material of construction

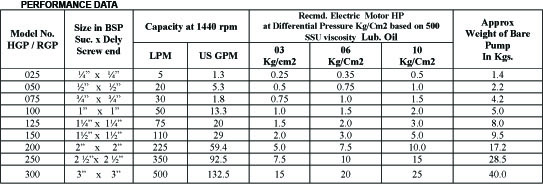

Performance Data
PERFORMANCE CURVE OF SPECIFIC MODELS WILL BE SENT BY MAIL ON REQUEST *
